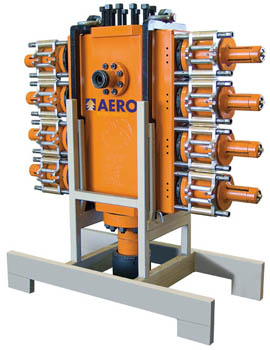

Quad Coil BOP Configuration 1
-
Quad Coil BOP Configuration 2
-
Quad Coil BOP Configuration 3
Aero Rental Services can supply Annular, Double Gate, Single Gate, and Coil Tubing Blow-out Preventers (BOP’s) for both conventional service and drilling rig work, all serviced by some of the best pressure control specialists in the industry.
| Key Specifications |
| Sizes |
7 1/6" to 13 5/8" |
| Pressure Range |
3,000# psi (21,000 kpa) to 10,000# psi (70,000 kpa) |
| Inventory of Annular BOP’s |
| 7' 1/16" 5,000# /179.4 mm 35,000 kPa, Annular, Single Gates (shear capable), Double Gates |
| 7' 1/16" 10,000# /179.4 mm 70,000 kPa, Annulars, Single Gates (shear capable), Double Gates |
| 9' 3,000# / 228.6 mm 21,000 kPa, Annulars, Single Gates, Double Gates |
| 11' 3,000# / 279.4 mm 21,000 kPa, Annulars, Single Gates, Double Gates |
| 11' 5,000# / 279.4 mm 35,000 kPa, Annulars, Single Gates (shear capable), Double Gates |
| 11' 10,000# / 279.4mm 70,000 kPa, Annulars, Single Gates (shear capable), Double Gates |
| 13' 3,000#, Annulars, Single Gates, Double Gates |
| 13' 5,000#, Annulars, Single Gates, Double Gates |
| Inventory of Coil Tubing BOP’s available in ¾”, 1”, 1 ¼“, 1 ½“, 1 ¾“, 2”, & 2 3/8 “ rams in combination pipe slip and conventional shear/blind rams. |
| 3” 5,000#, Dual Combination Coil |
| 3” 10,000#, Quad Coil |
| 4” 10,000#, Dual Combination Coil |
| 4” 10,000#, Quad Coil |
| 5” 5,000#, Dual Combination Coil |
| 5” 10,000#, Quad Coil |
